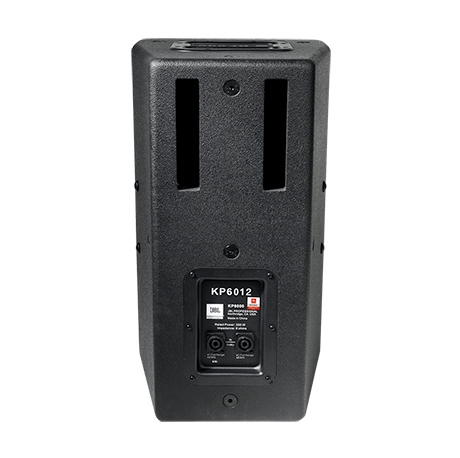

KP6012
详细信息
SPECIFICATIONS
| System Type | 12″, 2-way, bass-reflex | |
| Frequency Range (-10 dB) | 71 Hz - 20 KHz | |
| Frequency Response (±3 dB) | 90 Hz - 20 KHz | |
| Sensitivity (1w/1m) | 97 dB (1 kHz - 8 kHz) | |
| Nominal Impedance | 8 Ohms | |
| Maximum SPL | 124 dB (130 dB peak) | |
| Power Rating (Continuous/Program/Peak) | 350 W/700 W/1400 W | |
| Coverage Pattern | 70° x 60° (H x V) | |
| Dimensions (H x W x D) | 600 mm x 350 mm x 382 mm 23.6 in x 13.8 in x 15.0 in |
|
| Net Weight | 14.7 Kg (32.5 lbs) | |
| LF Drivers | 1 x JBL 262H-1 300 mm (12 in ) Differential Drive woofer with dual 50.8 mm (2 in) voice coil | |
| HF Drivers | 1 x JBL 2408H-1 | |
| Input Connectors | 2 x Neutrik® Speakon® NL4MP | |
| Enclosure Construction | Trapezoid, 15 mm, plywood |
