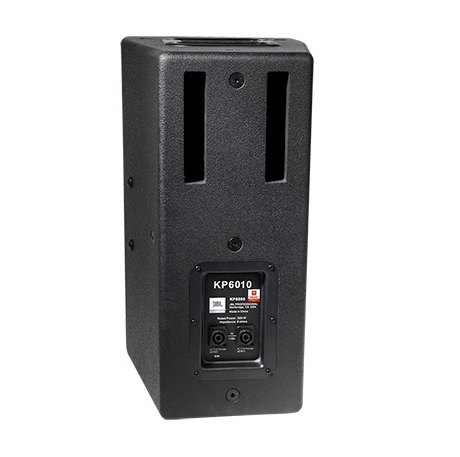

KP6010
详细信息
SPECIFICATIONS
System Type | 10″, 2-way, bass-reflex | |
Frequency Range (-10 dB) | 72 Hz - 20 KHz | |
Frequency Response (±3 dB) | 90 Hz - 20 KHz | |
System Sensitivity (1w @ 1m) | 95 dB (near corner), 89 dB (center of wall) | |
Nominal Impedance | 8 ohms | |
Maximum SPL | 122 dB (128 dB peak) | |
Power Rating (Continuous/Program/Peak) | 300 W/600 W/1200 W | |
Coverage Pattern | 80° x 70° (H x V) | |
Dimensions (H x W x D) | 524 mm x 300 mm x 340 mm 20.6 in x 11.8 in x 13.4 in |
|
Net Weight | 11.9 Kg (26.2 lbs) | |
LF Drivers | 1 x JBL 261H | |
HF Drivers | 1 x JBL 2408H-1 | |
Input Connectors | 2 x Neutrik® Speakon® NL4MP | |
Enclosure Construction | Trapezoid, 15 mm, plywood |
